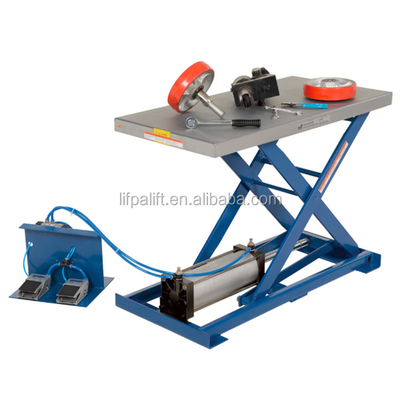

200kg Air Powered Pneumatic Scissor Lift Table
Real Pictures
Product Highlights
• Air-cylinder - No Electrical power or hydraulic oil is required
• User-friendly foot operated controls
• Optional SUS 304 Grade deck
Features
• Portable ergonomic lift table minimizes workers bending and lifting
• Perfect for use in many environmentally sensitive applications
• No electrical power or hydraulic oil is required
• All steel frame with powder coated finish
• Foot control for effortless operation
• Custom size and specs available
Main Parameters
| Model | PG-10-P | PG-20-P | |
| capacity | kg | 100 | 200 |
| table size | mm | 1000 x 500 | 1850 x 700 |
| raised height | mm | 750 | 1250 |
| lowered height | mm | 285 | 300 |
| air supply | Mpa | 0.80 | 0.80 |
| lift speed | mm/s | 78 | 72 |
| weight | kg | 84 | 128 |
Optional Equipment
We offer a full line of hydraulic scissor lift tables and other material handling equipment.
